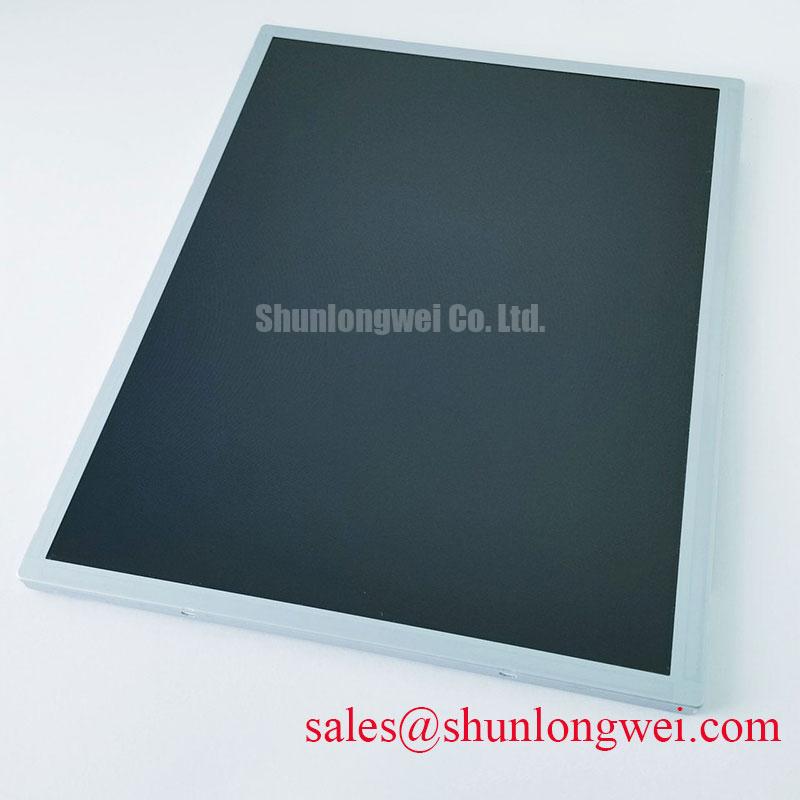

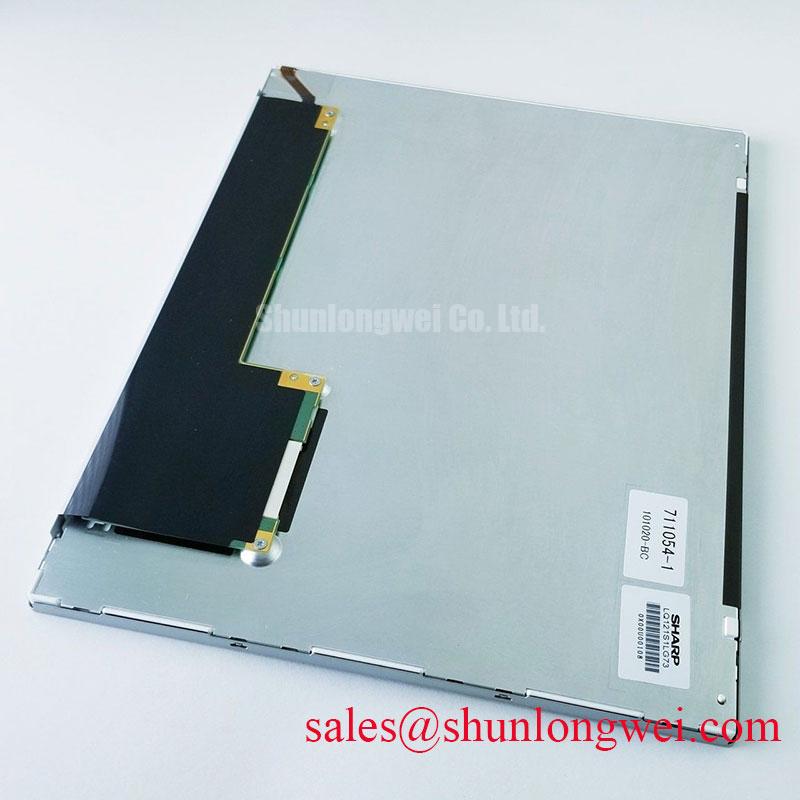

This is a 12.1-inch Sharp TFT-LCD display with a resolution of 800×600 (SVGA) and a display mode of TN, normally white, transmissive. The active area of the panel is 246×184.5mm, with a brightness of 450 cd/m² and a contrast ratio of 800:1.

The display has a viewing angle of 80/80/60/80 (Typ.) and a response time of 30ms. It uses WLED lighting and has an LVDS signal interface with a 3.3V input voltage. The surface has an antiglare, hard coating with a 3H rating.

Panel Brand : Sharp
Panel Model : LQ121S1LG73
Panel Type : a-Si TFT-LCD , Panel
Panel Size : 12.1 inch
Resolution : 800(RGB)×600 , SVGA
Display Mode : TN, Normally White, Transmissive
Active Area : 246×184.5 mm
Outline : 265×205×9.5 mm
Surface : Antiglare, Hard coating (3H)
Brightness : 450 cd/m² (Typ.)
Contrast Ratio : 800:1 (Typ.)
Display Colors : 16.2M   (6-bit + FRC)
Response Time : 30 (Typ.)(Tr/Td)
Viewing Angle : 80/80/60/80 (Typ.)(CR≥10) (L/R/U/D)
Frequency : 60Hz
Lamp Type : WLED
Signal Interface : LVDS (1 ch, 8-bit)
Input Voltage : 3.3V (Typ.)
