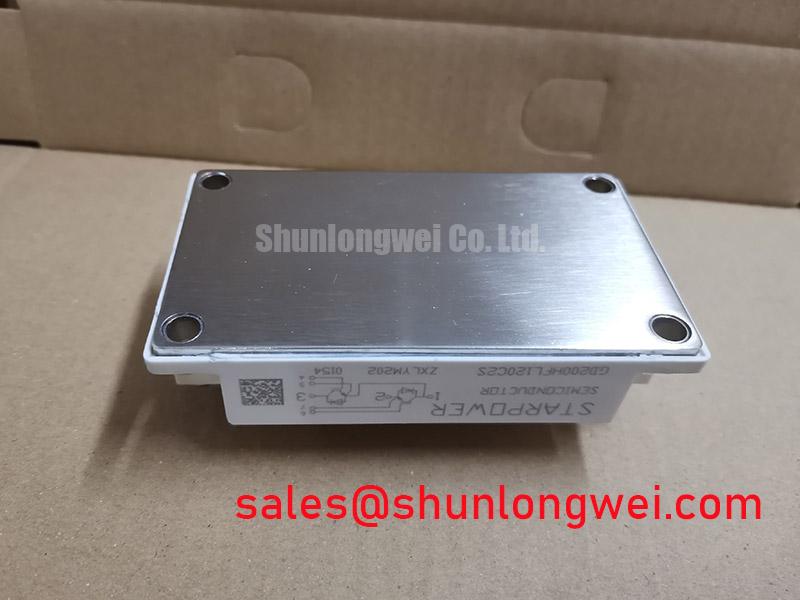

Starpower #GD200HFL120C2S New Instock

GD200HFL120C2S GD200HFL120C2S GD200HFL120C2S GD200HFL120C2S GD200HFL120C2S GD200HFL120C2S General Description
STARPOWER IGBT Power Module provides ultra low conduction loss as well as short circuit ruggedness.
They are designed for the applications such as general inverters and UPS.
 Low VCE(sat) SPT+ IGBT technology
 10μs short circuit capability
 VCE(sat) with positive temperature coefficient
 Low inductance case
 Fast & soft reverse recovery anti-parallel FWD
 Isolated copper baseplate using DBC technology
Typical Applications
Inverter for motor drive
 AC and DC servo drive amplifier
 Uninterruptible power supply
Maximum ratings and characteristics
.Absolute maximum ratings (Tc=25°C unless without specified)
Collector-Emitter voltage Vces:1200V
Gate-Emitter voltage VGES:±20V
Collector current Ic:200A
Collector current Icp:400A
Collector power dissipation Pc:1364W
Collector-Emitter voltage VCES:4000V
Operating junction temperature Tj:+150°C
Storage temperature Tstg :-40 to +125°C
Mounting Torque Power Terminal Screw:M6 2.5 to 5.0 N.m
Mounting screw:M6 3.0 to 5.0 N.m
Molding Type Module 1200V/200A 2 in one-package

The Starpower GD200HFL120C2S is an IGBT power module designed for use in applications such as inverters, UPS systems, motor drives, AC and DC servo drive amplifiers, and uninterruptible power supplies. It features low conduction loss and short circuit ruggedness and uses low VCE(sat) SPT+ IGBT technology. The module has a maximum collector-emitter voltage of 1200V, a maximum gate-emitter voltage of ±20V, a maximum collector current of 200A, and a maximum collector power dissipation of 1364W. The operating junction temperature is rated at +150°C and the storage temperature can range from -40°C to +125°C. The module is packaged as a 2-in-one module with a maximum mounting torque of 2.5 to 5.0 N.m for the power terminal screw and 3.0 to 5.0 N.m for the mounting screw.
