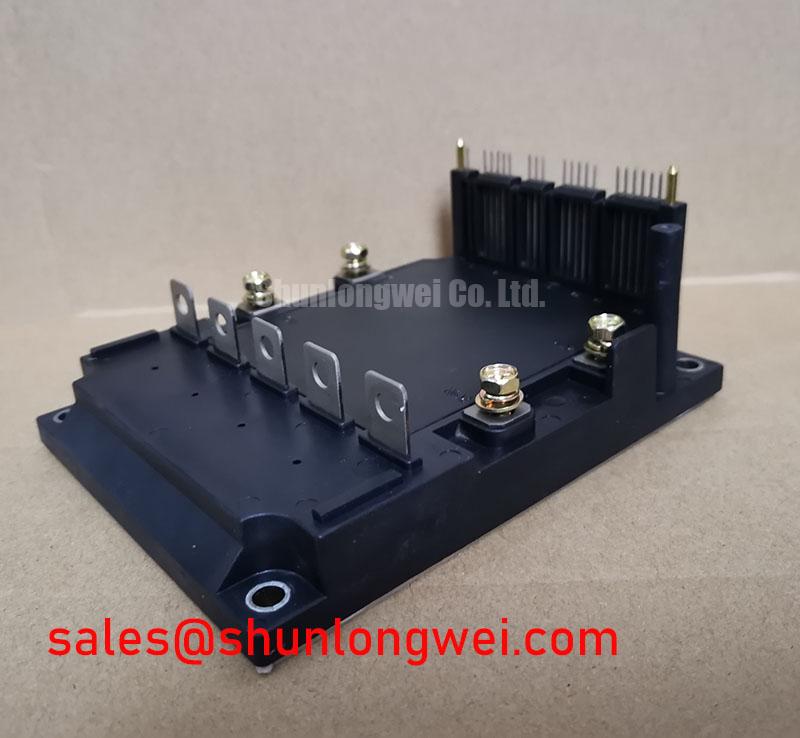

Fuji 6MBP100RS120 is a power transistor module made by Fuji Electric. It belongs to the 6MBP series of power modules and is designed for use in high power switching applications such as motor control, power supplies, and inverters.

6MBP100RS120 module consists of six insulated gate bipolar transistors (IGBTs) arranged in a three-phase bridge configuration. It has maximum collector-emitter voltage 1200V & maximum collector current 100A, the module also includes built-in temperature sensors & short-circuit protection, suitable for high power applications.

6MBP100RS120 Features
. Temperature protection provided by directly detecting the junction temperature of the IGBTs
. Low power loss and soft switching
. High perfor mance and high reliability IGBT with overheating protection
. Higher reliability because of abig decrease in number of parts in built-in control circuit
Maximum ratings and characteristics
.Absolute maximum ratings (Tc=25°C unless without specified)
Collector-Emitter voltage Vces:1200V
Gate-Emitter voltage VGES:±20V
Collector current Ic Continuous Tc=25°C :100A
Collector current Icp 1ms Tc=25°C :200A
Collector power dissipation Pc:735W
Isolation Voltage VIsol (AC 1 minute) :2500V
Operating junction temperature Tj:+150°C
Storage temperature Tstg :-40 to +125°C
Mounting screw torque 3.5 *5 N·m
