FEATURES
• 175 °C TJ operation
•Low forward voltage drop
•High frequency operation
•Low thermal resistance
•UL pending
•Compliant to RoHS Directive 2002/95/EC
•Designed and qualified for industrial level
BENEFITS
•Excellent thermal performances obtained by the usage of exposed direct bonded copper substrate
•High surge capability
•Easy mounting on heatsink
ELECTRICAL DESCRIPTION

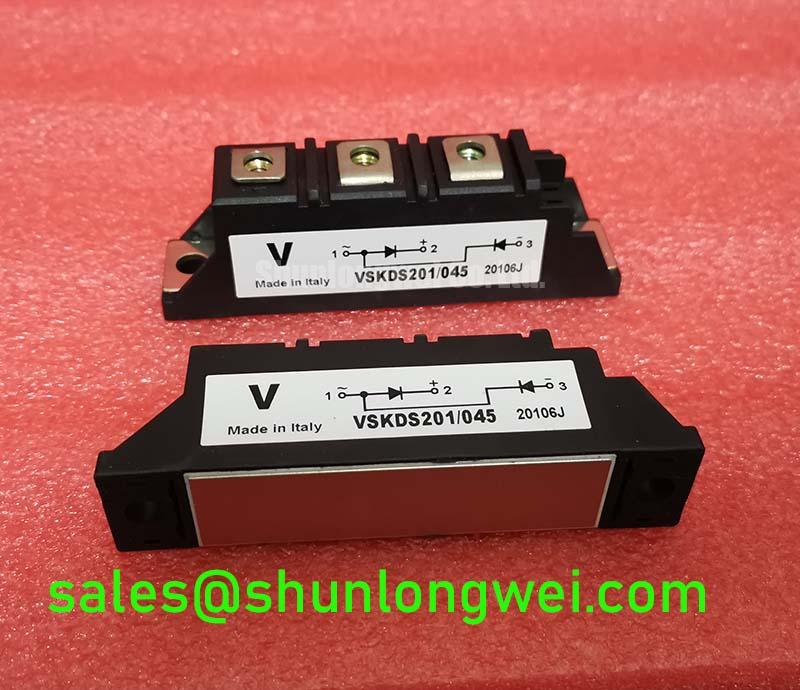

The VSKDS201.. Schottky rectifier doubler module has been optimized for low reverse leakage at high temperature. The proprietary barrier technology allows for reliable operation up to 175 °C junction temperature.
Typical applications are in high current switching power supplies, plating power supplies, UPS systems, converters, freewheeling diodes, welding, and reverse battery protection.
MECHANICAL DESCRIPTION
The ADD-A-PAK generation VII, new generation of ADD-A-PAK module, combines the excellent thermal performances obtained by the usage of exposed direct bonded copper substrate, with advanced compact simple package solution and simplified internal structure with minimized number of interfaces.
ADD-A-PAK Generation VII Power Modules Schottky Rectifier 100 A
