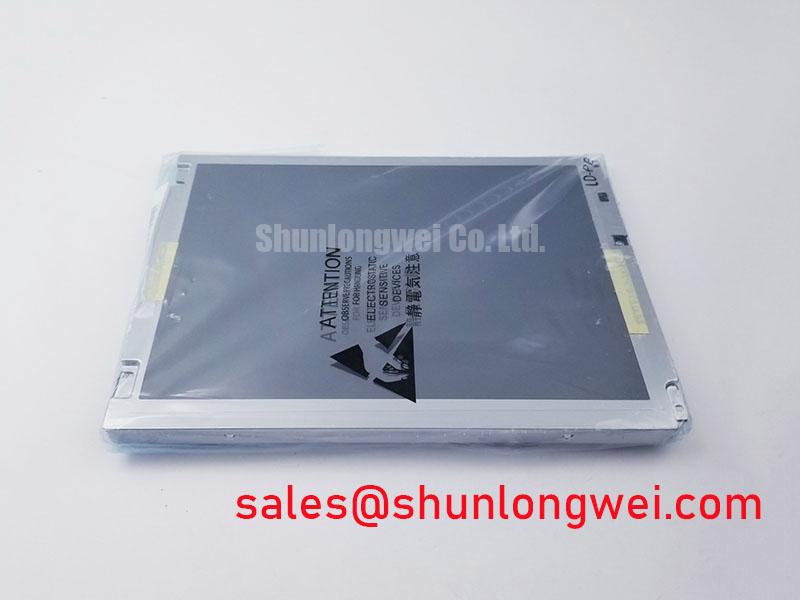

NEC #NL6448BC33-64R New instock
Panel Brand : NEC
Panel Model : NL6448BC33-64R
Panel Type : a-Si TFT-LCD , Panel
Panel Size : 10.4 inch
Resolution : 640(RGB)×480 , VGA
Display Mode : TN, Normally White, Transmissive
Active Area : 211.2×158.4 mm
Outline : 243×185.1×11 mm
Surface : Clear, Hard coating (3H)
Brightness : 450 cd/m² (Typ.)
Contrast Ratio : 600:1 (Typ.)
Display Colors : 262K (6-bit) , CIE1931 40%
Response Time : 6/19 (Typ.)(Tr/Td)
Viewing Angle : 80/80/80/60 (Typ.)(CR≥10) (L/R/U/D)
Frequency : 60Hz
Lamp Type : 2 pcs CCFL Without Driver
Signal Interface : CMOS (1 ch, 6-bit) , 31 pins
Input Voltage : 3.3/5.0V (Typ.)
Max. Ratings Storage Temp.: -20 ~ 80 °C Operating Temp.: -10 ~ 70 °C ; Vibration Level: 2.0G (19.6 m/s²)
