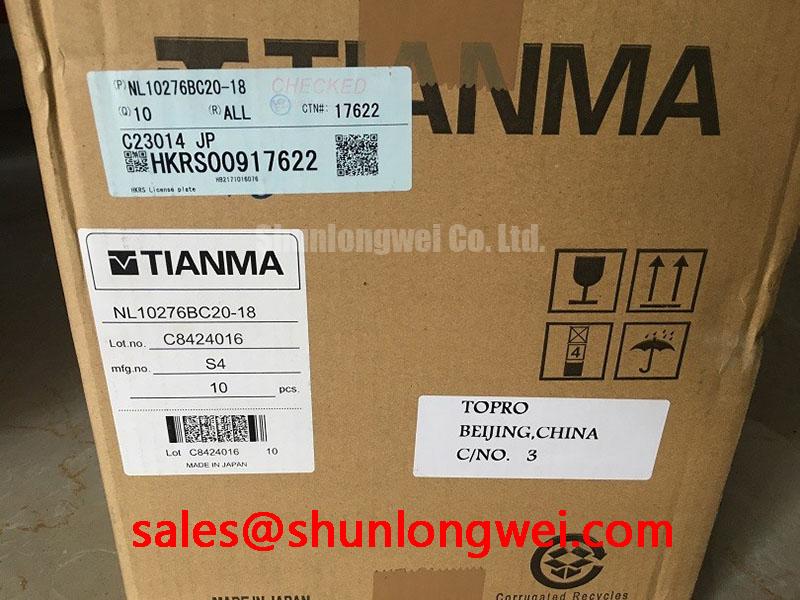

NEC #NL10276BC20-18 New Instock

NL10276BC20-18 NL10276BC20-18 NL10276BC20-18 NL10276BC20-18

Panel Brand: NEC
Panel Model: NL10276BC20-18
Panel Size: 10.4″Panel
Type: a-Si TFT-LCD, LCM
Resolution: 1024(RGB)×768 , XGA
Pixel Format: RGB Vertical Stripe
Display Area: 210.4(W)×157.8(H) mm
Bezel Opening: 215.4(W)×161.8(H) mm
Outline Size: 228(W)×178.5(H) ×9.2(D) mm
Surface: Clear, Hard coating (3H)
Brightness: 400 cd/m² (Typ.)
Contrast Ratio: 900:1 (Typ.) (TM)
Viewing Angle: 80/80/80/80 (Typ.)(CR≥10) Left / Right / Up / Down
Display ModeL TN, Normally White, Transmissive
Best View onL 6 o’clock
Response Time: 3/15 (Typ.)(Tr/Td)
Display Colors: 262K/16.7M   40% NTSC
Lamp Type: 2 strings WLED , 70K hours , Optional
Frequency: 60Hz
Touch Screen: Without
Panel Weight: 380/400g (Typ./Max.)
Application: Industrial
Signal Interface: LVDS (1 ch, 6/8-bit) , 20 pins , Connector
Input Voltage: 3.3V (Typ.)
Environment: Operating Temp.: -30 ~ 80 °C ; Storage Temp.: -30 ~ 80 °C ; Vibration Level: 2.0G (19.6 m/s²)

NEC NL10276BC20-18 is a model of LCD (liquid crystal display) panel manufactured by NEC. It is a type of display commonly used in computer monitors, televisions, and other electronic devices.


The NL10276BC20-18 panel has a screen size of 10.4 inches and a resolution of 640 x 480 pixels. It has a wide viewing angle of 170 degrees and a high contrast ratio of 1000:1, which means that it can display clear and crisp images from a variety of angles and in a range of lighting conditions. The panel also has fast response times, which makes it suitable for displaying fast-moving images.
