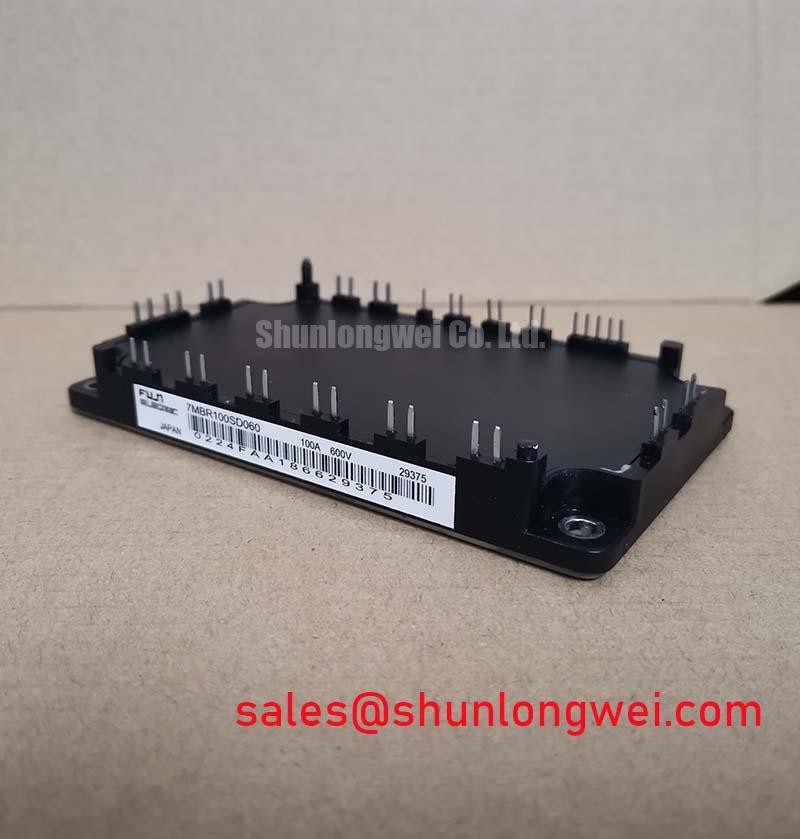

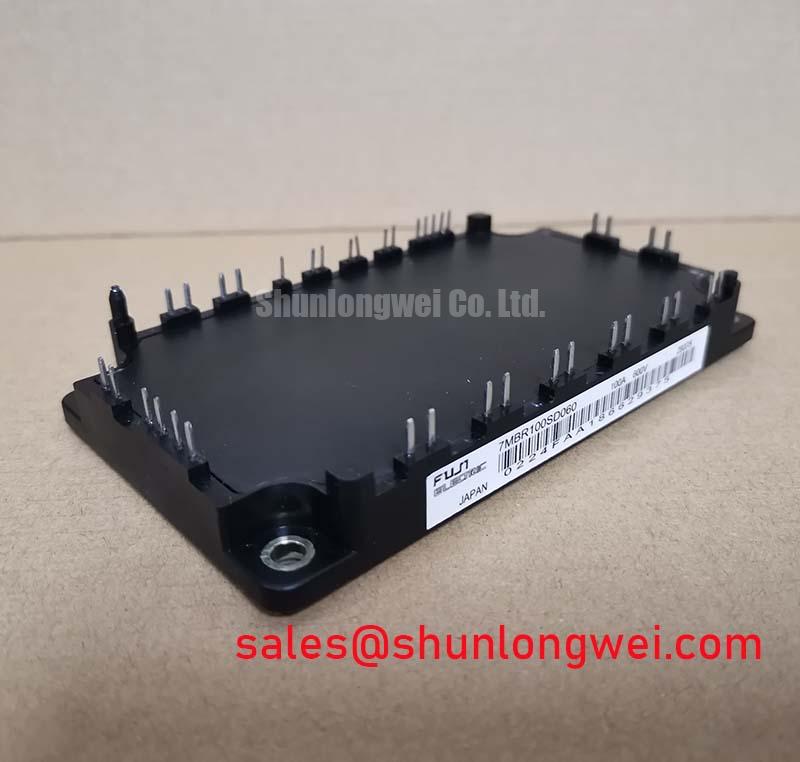

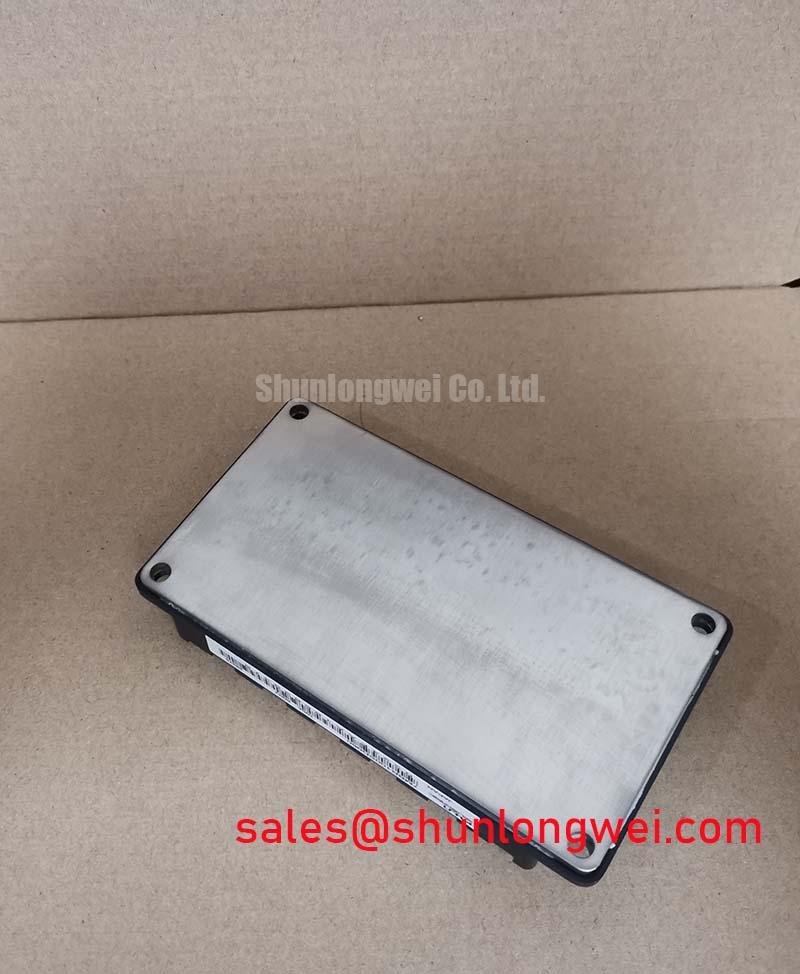

Fuji #7MBR100SD060 New Stock

7MBR100SD060 7MBR100SD060 7MBR100SD060 7MBR100SD060 Manufacturer Part Number: #7MBR100SD060
Low VCE(sat)
Compact Package
P.C.Board Mount Module
Converter Diode Bridge Dynamic Brake Circuit
RoHS compliant product
Inverter for Motor Drive
AC and DC Servo Drive Amplifier
Uninterruptible Power Supply
Maximum ratings and characteristics
.Absolute maximum ratings (Tc=25°C unless without specified)
Collector-Emitter voltage Vces:600V
Gate-Emitter voltage VGES:±20V
Collector current Ic:100A
Collector current Icp:200A
Collector power dissipation Pc:400W
Collector-Emitter voltage VCES:800V
Operating junction temperature Tj:+150°C
Storage temperature Tstg :-40 to +125°C
Mounting screw torque 3.5 *1 N·m
