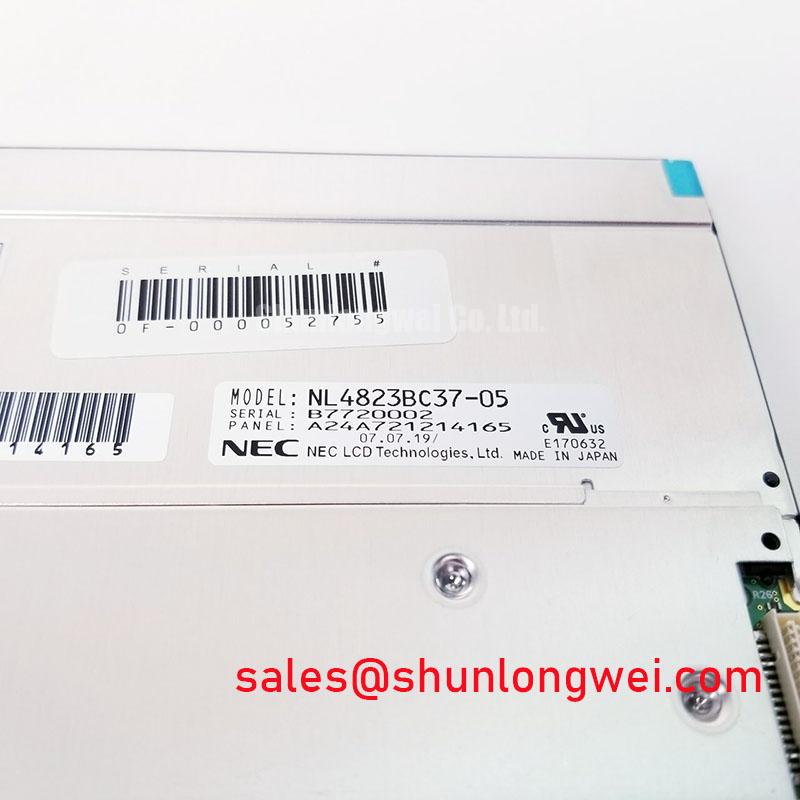

NEC NL4823BC37-05 New Stock
Brand NEC
Model NL4823BC37-05
Diagonal Size 7.0 inch
Type a-Si TFT-LCD, LCM
Pixel Format 480(RGB)×234 76PPI
Configuration RGB Vertical Stripe
Active Area 154.08(H)×87.05(V) mm
Outline Dim.174.5(H)×105.5(V) ×11(D) mm
Bezel Area 157.5(H)×90.5(V) mm
Treatment Clear, Hard coating (3H)
Luminance 400 cd/m² (Typ.)
Contrast Ratio 600:1 (Typ.) (TM)
View Direction 6 o’clock
Response Time 6/19 (Typ.)(Tr/Td)
Viewing Angle 80/80/60/80 (Typ.)(CR≥10) Left / Right / Up / Down
Operating Mode TN, Normally White, Transmissive
Support Color 262K 40% NTSC
Light Source CCFL [1 pcs] , W/O Driver
Weight 205/215g (Typ./Max.)
Designed For Industrial
Frame Rate 60Hz
120Hz (60HZ Input) : Embedded MEMC Circuit
120Hz+120Hz : 120Hz Panel+120Hz Backlight
240Hz (60HZ Input) : Embedded MEMC Circuit
Touch Panel Without
Interface Type CMOS (1 ch, 6-bit) , 31 pins Connector
Power Supply 3.3V (Typ.)(VCC)
