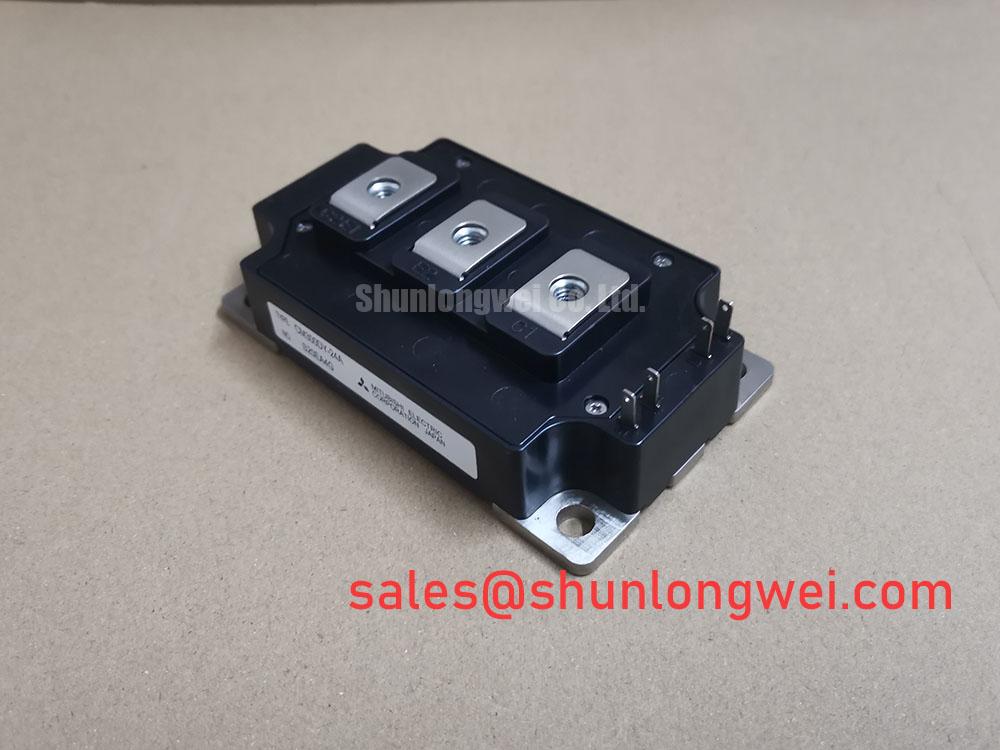

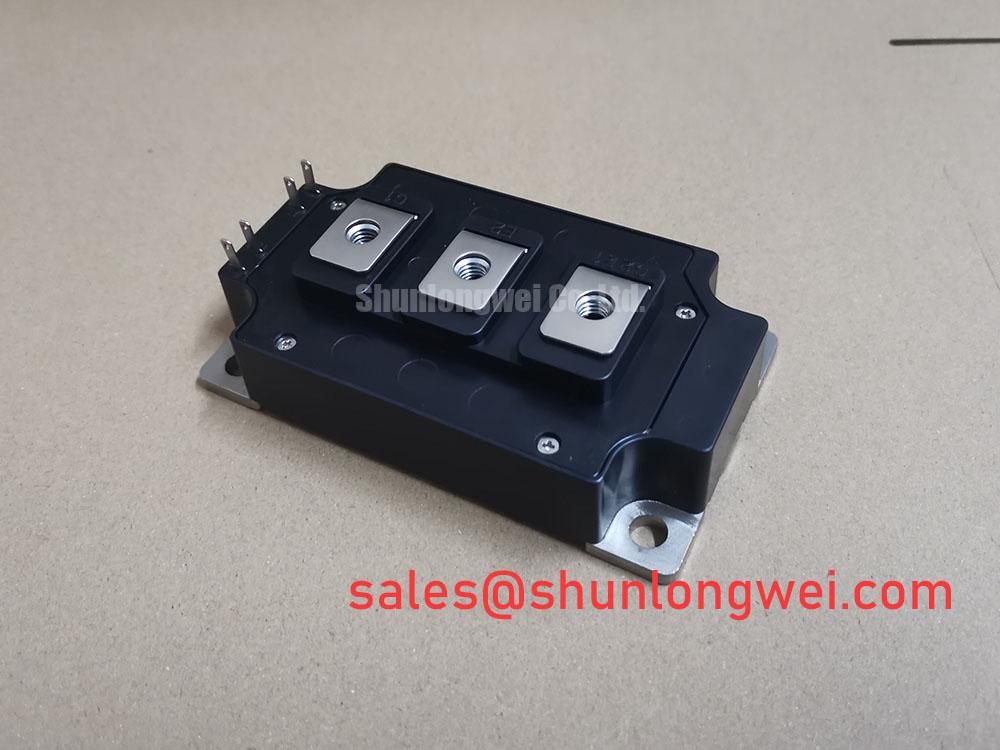

The Mitsubishi CM300DY-24A IGBT Module is a high-power switching device ideal for demanding applications. With a maximum collector current of 300A and a collector-emitter voltage of 1200V, this 2-element pack provides reliable and efficient performance. The module features an insulated type and has a maximum collector dissipation of 1890W and a junction temperature range of -40°C to +150°C. Additionally, it boasts an isolation voltage of 2500V and a storage temperature range of -40°C to +125°C. This compact and lightweight module, weighing only 400g, offers excellent performance with a maximum gate-emitter voltage of ±20V and a maximum collector current of 600A. The 300A/1200V/IGBT/2U design makes it an ideal solution for high power switching needs.

MITSUBISHI IGBT MODULES CM300DY-24A HIGH POWER SWITCHING USE
. iC ………………………………………………………….300A
. VCES . ………………………………………………. 1200V
. Insulated Type
. 2-elements in a pack
ABSOLUTE MAXIMUM RATINGS (Tj = 25°C)
Collector-emitter voltage VCES 1200V
Gate-emitter voltage VGES ±20 V
Collector current IC 300 A
Collector current ICM 600 A
Maximum collector dissipation PC 1890 W
Junction temperature Tj –40 ~ +150 °C
Storage temperature Tstg –40 ~ +125 °C
Isolation voltage 2500V
Weight 400g
300A/1200V/IGBT/2U; Module Transistor N Channel 300 A 1.2 kV 1.89 kW 1.2 kV Module
