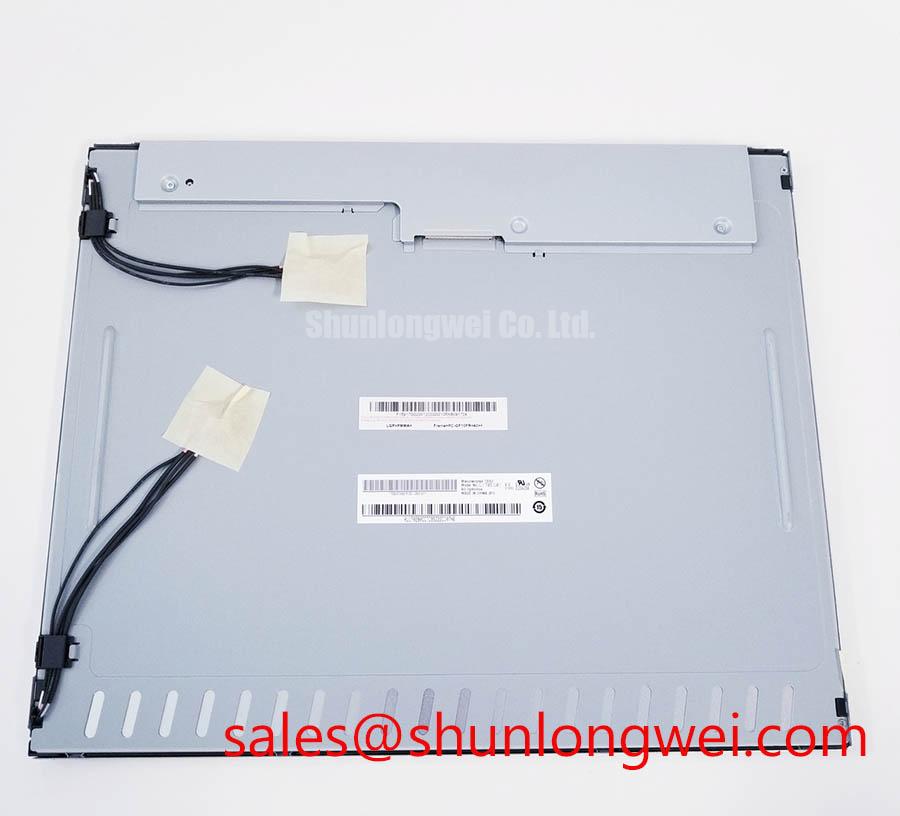

AUO #G170EG01 V0 New Instock
Panel Brand :AUO
Panel Model :G170EG01 V0
Panel Type :a-Si TFT-LCD , Panel
Panel Size :17.0 inch
Resolution :1280(RGB)×1024 , SXGA
Display Mode :TN, Normally White, Transmissive
Active Area :337.92×270.336 mm
Outline :358.5×296.5 mm
Surface :Antiglare, Hard coating (3H)
Brightness :380 cd/m² (Typ.)
Contrast Ratio :1000:1 (Typ.)
Display Colors :16.7M (6-bit + Hi-FRC)
Response Time :3.5/1.5 (Typ.)(Tr/Td)
Viewing Angle :85/85/80/80 (Typ.)(CR≥10) (L/R/U/D)
Frequency :60Hz
Lamp Type :4 pcs CCFL
Signal Interface :LVDS (2 ch, 8-bit)
Input Voltage :5.0V (Typ.)
G170EG01 V0 inverter, G170EG01 V0 power supply, G170EG01 V0 electronic board, G170EG01 V0 VGA board, G170EG01 V0 touchscreen available.
