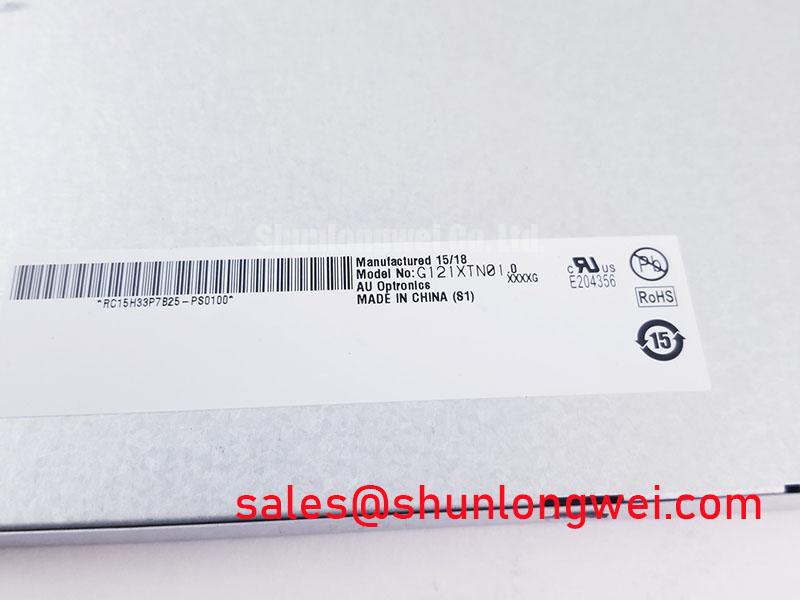

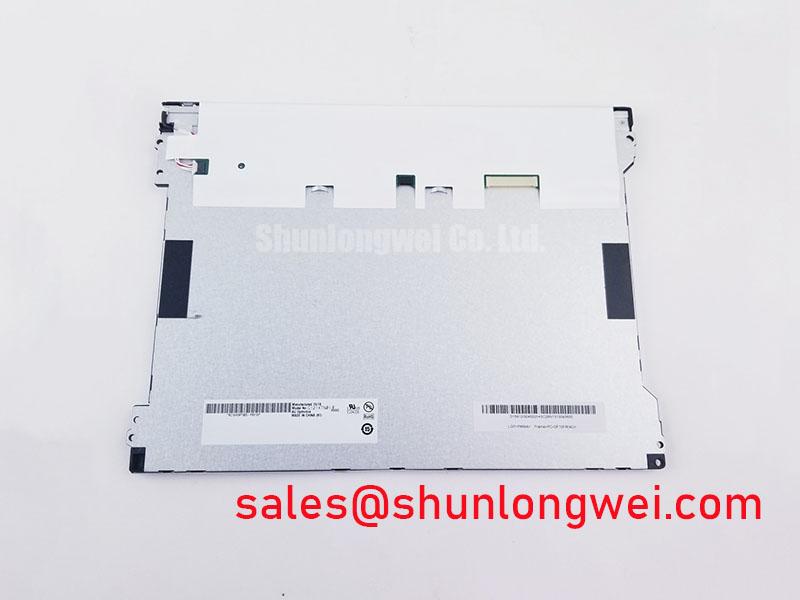

AUO #G121XTN01.0 New Instock

Panel Brand:  AUO
Panel Model:  G121XTN01.0
Panel Size:  12.1 inch
Panel Type:  a-Si TFT-LCD, LCM
Resolution: 1024(2)×768(2) , XGA
Pixel Format: RGBW Rectangle
Display Area: 245.76(W)×184.32(H) mm
Bezel Opening: 250.8(W)×188.4(H) mm
Outline Size: 279(W)×209(H) ×9(D) mm
Surface: Antiglare, Hard coating (3H)
Brightness: 500 cd/m² (Typ.)
Contrast Ratio: 700:1 (Typ.) (TM)
Viewing Angle: 80/80/80/80 (Typ.)(CR≥10)
Display Mode: TN, Normally White, Transmissive
Response Time: 25/10 (Typ.)(Tr/Td)
Display Colors: 262K/16.2M   72% (CIE1931)
Lamp Type: 6S3P WLED , 50K hours , Embedded (LED Driver)
Frequency: 60Hz
Touch Screen: Without
Panel Weight: 495g (Max.)
Application: Industrial
Signal Interface: LVDS (1 ch, 6/8-bit) , 20 pins , Connector
Input Voltage: 3.3V (Typ.)
Environment
Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -30 ~ 85 °C
